LFH60 Magnetic-Mount Temperature and Humidity Transmitter
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications
LFH60 Magnetic-Mount Temperature and Humidity Transmitter
Product features
-

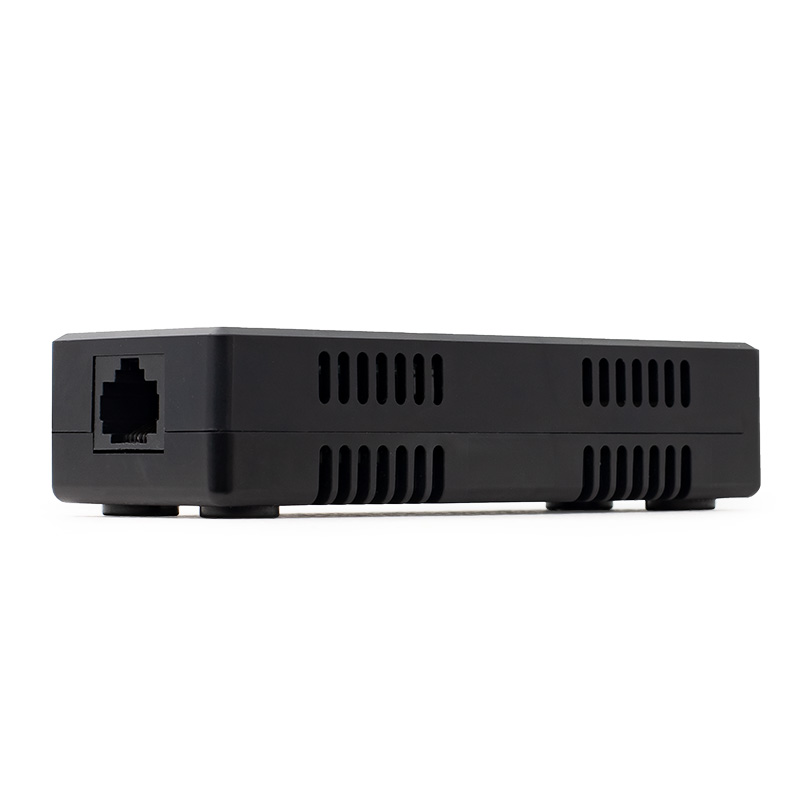

■It has dual RJ45 interfaces and adopts the hand-in-handwiring method.

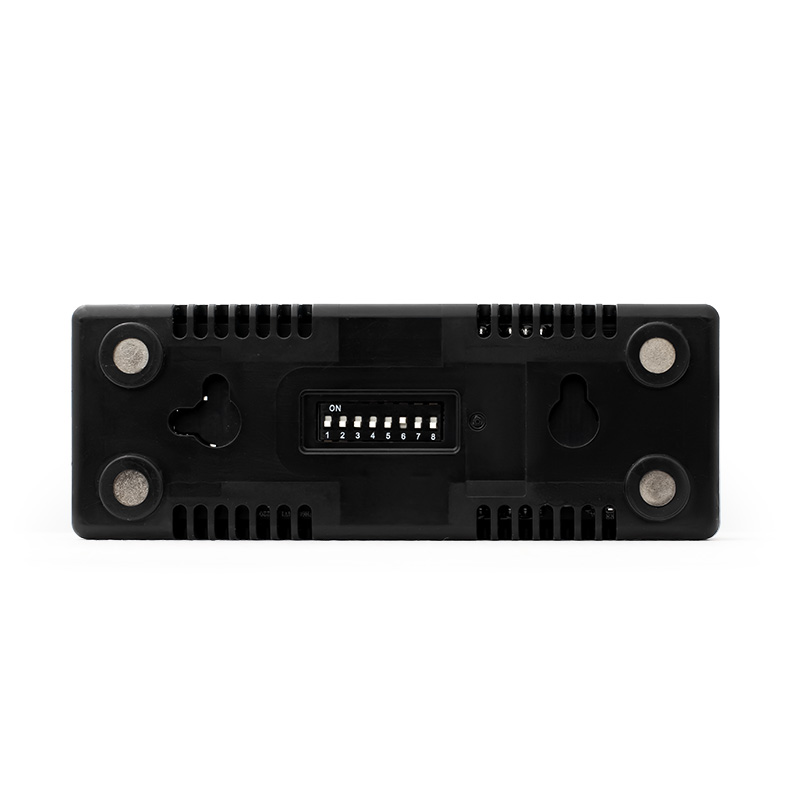

■The address and baud rate can be quickly set through theDIP switch,which is convenient and fast.

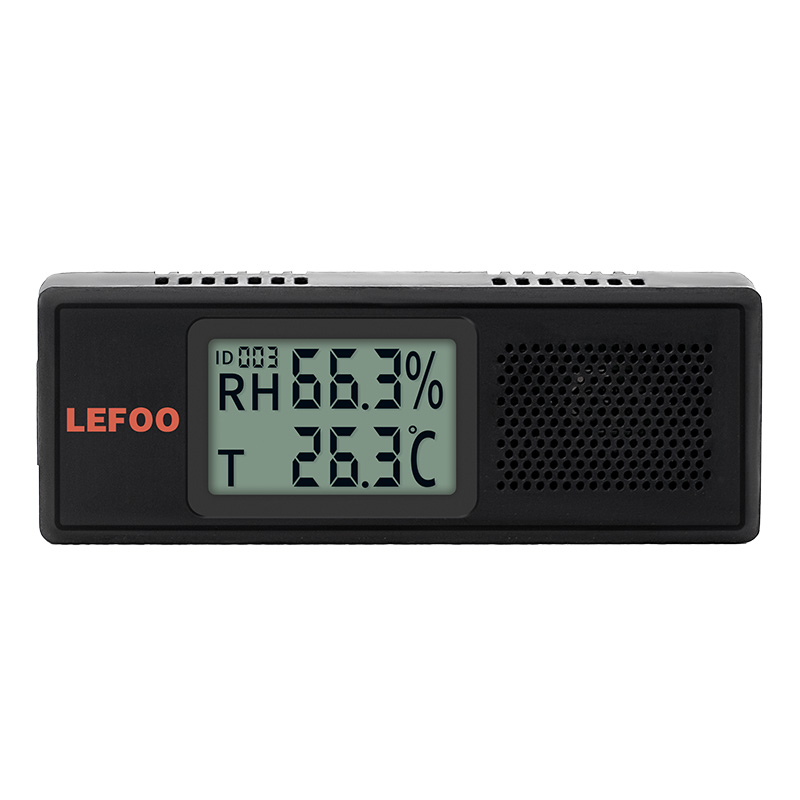

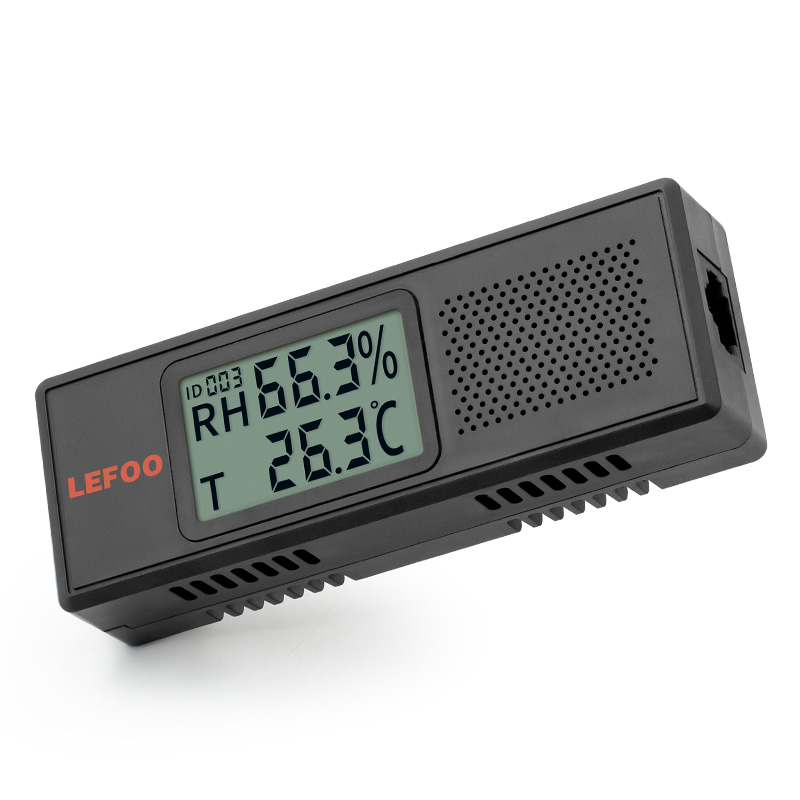

■Lightweight and beautiful case design,can displaytemperature,humidity and address.

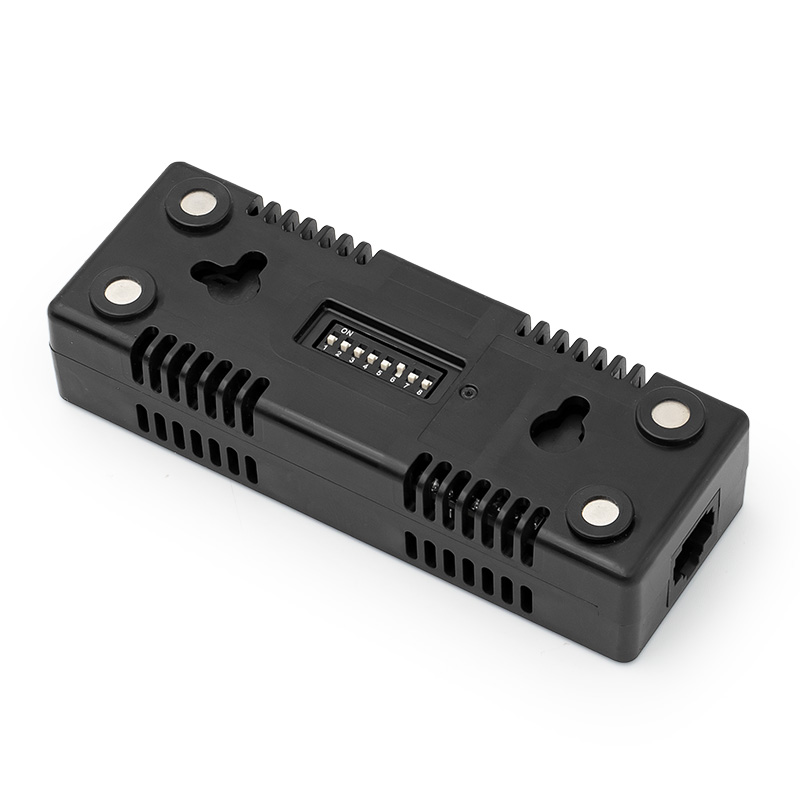

■Magnetic suction and upside-down structure design,easyto install.
Detailed Description
DESCRIPTION
LFH60 series temperature and humidity transmitter adopts high-precision temperature and humidity sensorHighdegree fast response,and good long-term stability.The back has four strongForce magnet,which can be directlyadsorbed on the cabinet or wallmounted,greatly improvesIn stallation efficiency.Temperature,humidity and addresscan be displayed.This product is widely applicable to general.Communication machine room,warehouse building,library and other places.
SPECIFICATION
(1)Relative Humidity | |
Sensor | Digital |
Range | 0%~100% |
Output | RS485/Modbus |
Accuracy | ±3%@20℃&60%RH |
(2)Temperature | |
Sensor | Digital |
Output | RS485/Modbus |
Accuracy | ±0.3℃@20℃ see table below |
Power supply | 9-26VDC |
Display | Optional LCD display with unit display |
Shell material | ABS shell |
Working environment | -20~60℃,5%-95%RH(non-condensing) |
