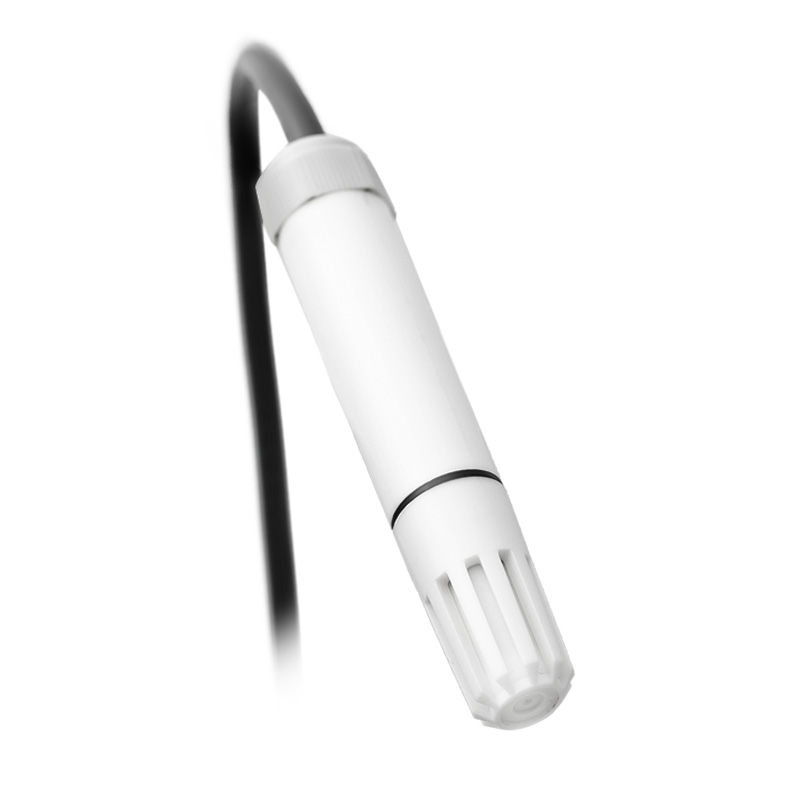

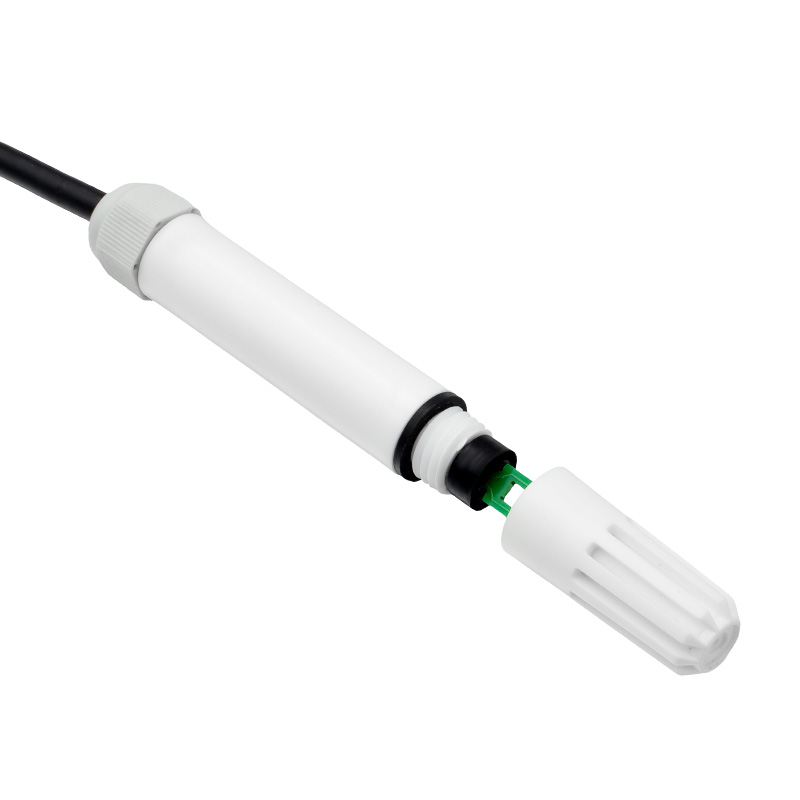

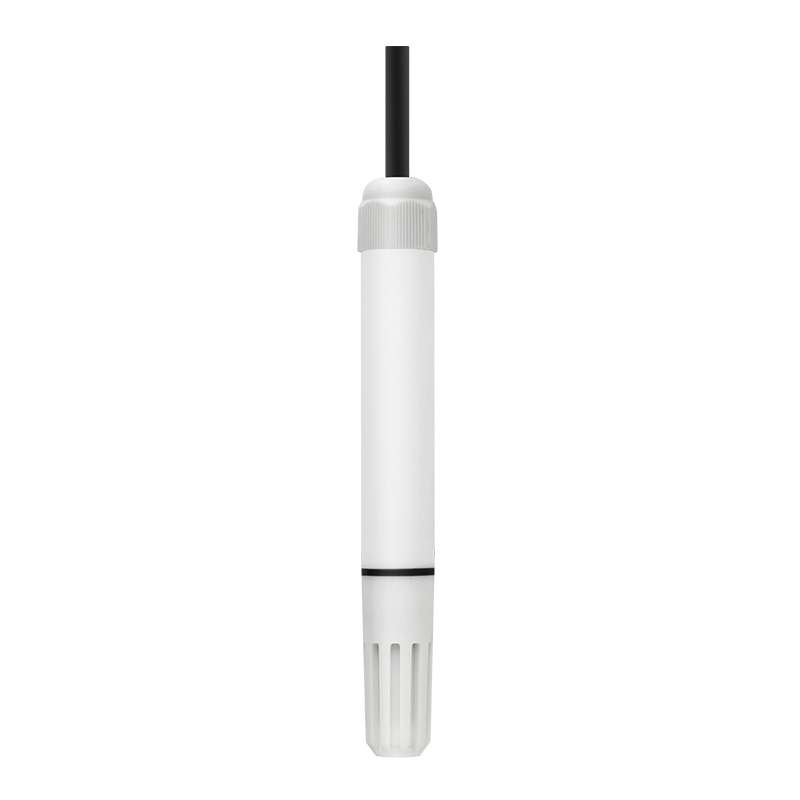

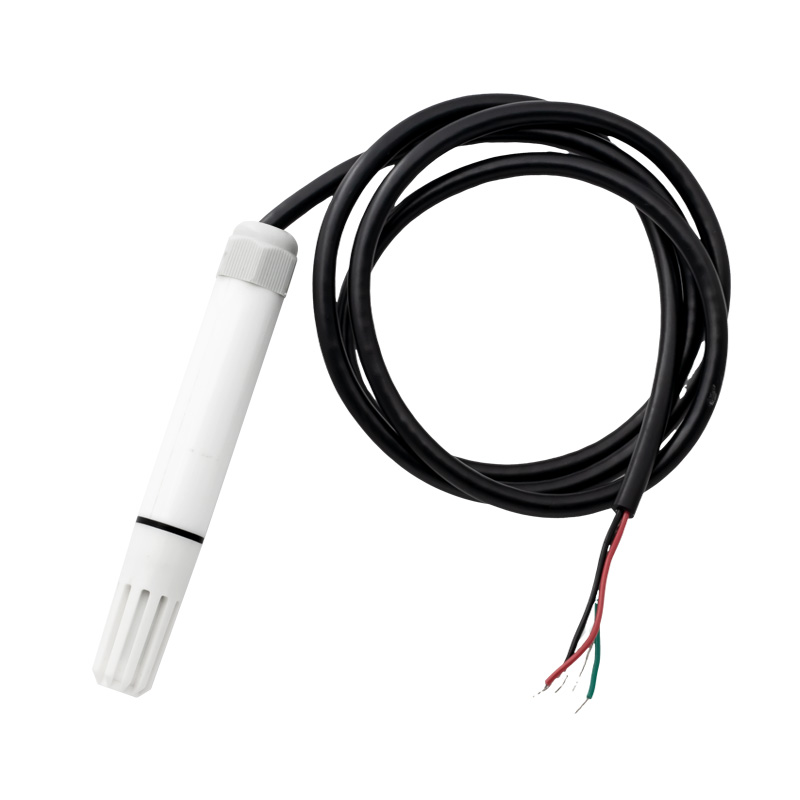

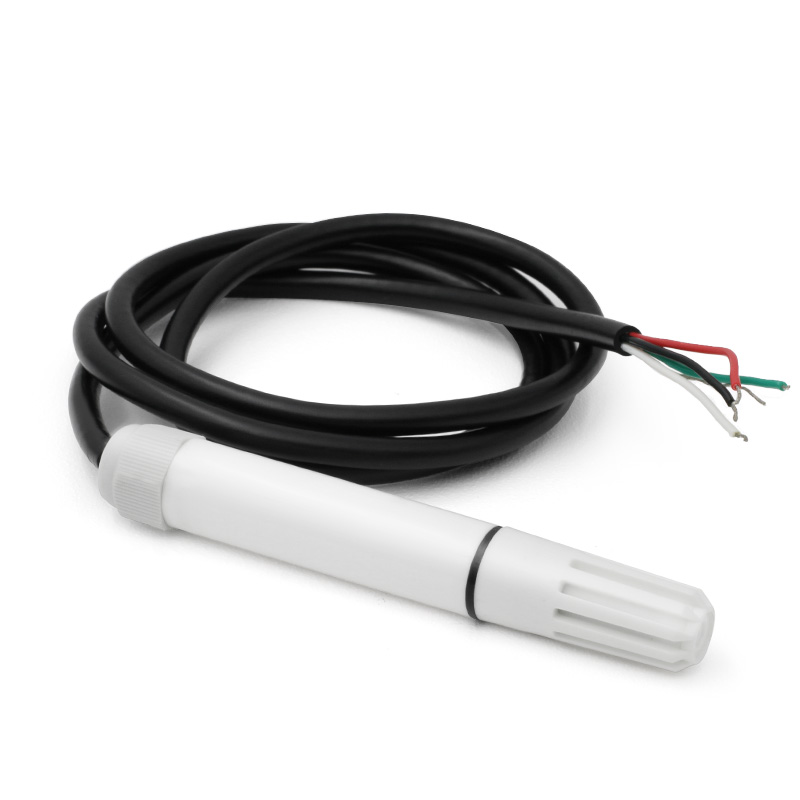

LFH51 Probe Type Temperature and Humidity Transmitter
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications
LFH51 Probe Type Temperature and Humidity Transmitter
Product features
-
■Compact sizes,Simple installation
■Overvoltage and reverse connection protection of power supply and output
■High protection grade of IP65
Detailed Description
DESCRIPTION
The series LFH51 temperature and humidity transmitter adopts high precision digital probe,and has long term stabilityand good antiinterference ability.It is simple to install and operation,There are three output modes available:voltage,RS485,and current.It can be widely used in temperatureand humidity measuring of ventilation ducts,industrialworkshops,storage,etc.
SPECIFICATION
(1)Relative Humidity | |
Sensor | Digital |
Range | 0%~100% |
Output | Output:RS485/Modbus,0-10VDC,4-20mA optional |
Precision | ±3%@20℃&60%RH |
(2)Temperature | |
Sensor | Digital |
Output | Output:RS485/Modbus,0-10VDC,4-20mA optional |
Precision | ±0.3℃@20℃ see temperature accuracy curve |
Power supply | Voltage/RS485 type:12-36VDC |
Shell material | PA6 case |
Working environment | -40~85℃,5%-95%RH(non-condensing) |
Protection class | IP65 |
SELECTION DESCRIPTION
Code and description | Remark | ||||||
LFH51 | The rod type temperature and humidity transmitter | Model | |||||
3 |
|
| |||||
V10 | 0~10VDC(three wires) | Humidity output | |||||
RS | RS485/Modbus | ||||||
A4 | 4~20mA(two wires) | ||||||
V10 | 0~10VDC (three wires) | Temperature | |||||
RS | RS485/Modbus | ||||||
A4 | 4-20mA(two wires) | ||||||
0 | None | Temperature | |||||
1 | 0~50℃ | ||||||
2 | -20~60℃ | ||||||
8 | Other(customer specified) | ||||||
| Selection example | ||||||
1.Only when the temperature output option is V10 and A4,you need to choose the corresponding temperature volume18;otherwise,you can only choose 0.
2.The current type output adopts a long pole.
3.Example LFH513V10V102 represents the rod format,the temperature and humidity accuracy is±3%RH 20℃&60%RH
(±0.3℃ 20℃),and the humidity output is 010VDC.The temperature output is 0~10VDC,and the temperature volumeis20~60℃.
4.Prolonged exposure of the sensor probe to high concentrations of chemical gases may result in reading deviationsof the sensor.
