Products Description

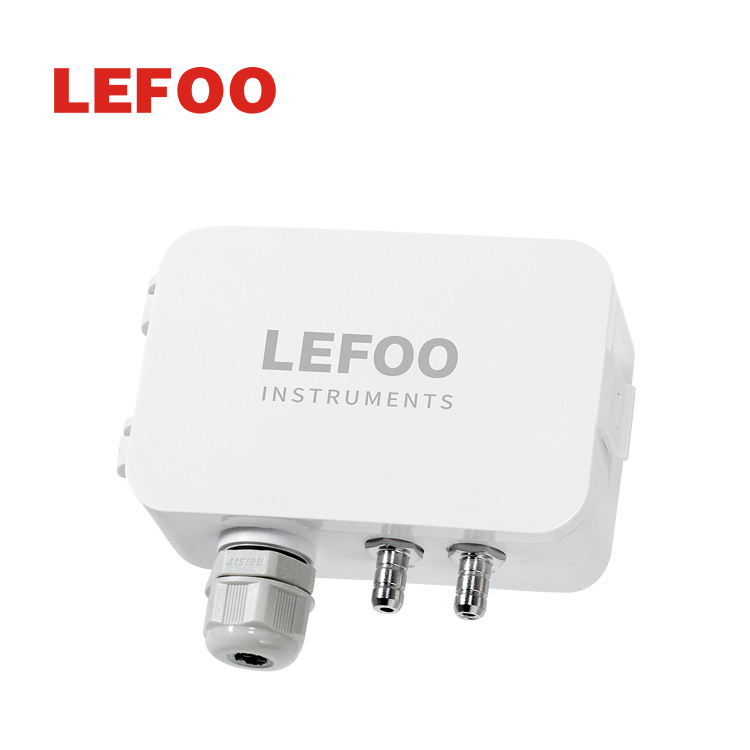

DESCRIPTION

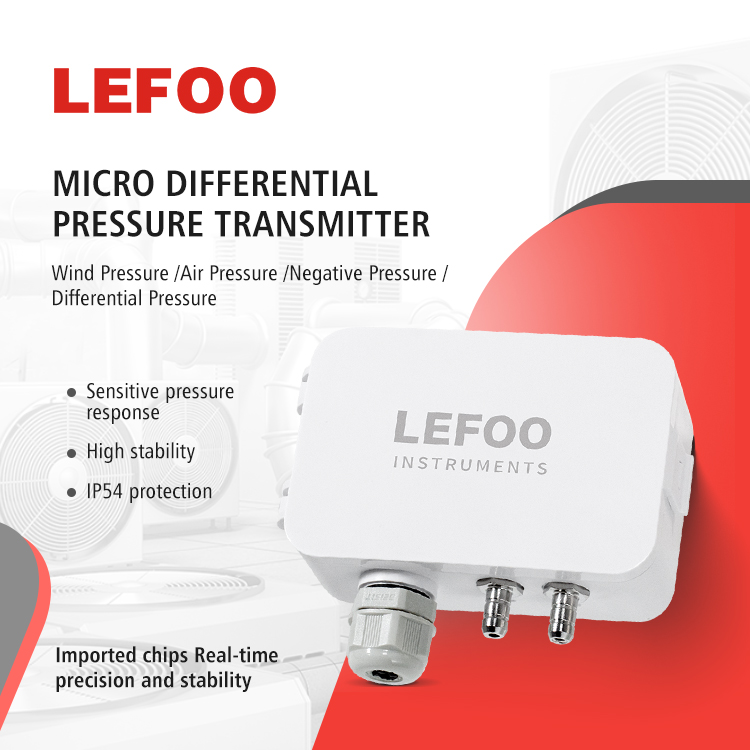

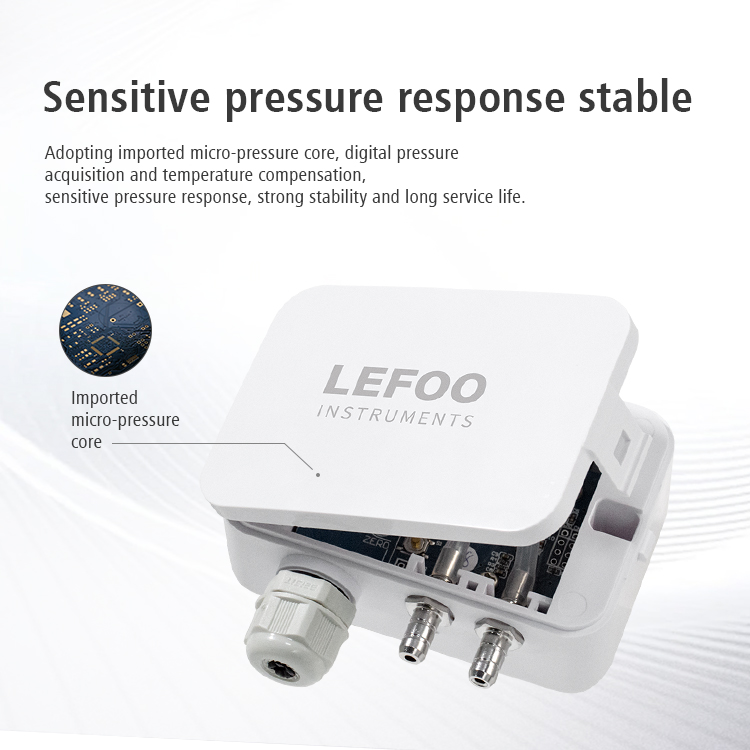

LFM108 differential pressure transmiter is used to detect diferential pressure or gauge pressure,and converthisdiferential pressure into proportional signal output.It can output 0-5/10V,4-20mA or RS485 digitasignal.This product isused in building energy management system to measure the precise pressure and flowrequired for building pressurizationand air flow control.Also suitable for heating,ventilation and air conditioning(HVAC),energy management systems,VAVand fan control,environmental pollution control,static piping andclean room pressure fume hood control,ovenpressurization and furnace ventilation control.
SPECIFICATION | ||||
Testing Medium | Air or neutral gas | |||
Pressure Range | ±100Pa,±1000Pa,±10000Pa | |||
Overload Pressure | Maximum 15 times the rated pressure | |||
Accuracy | ±1%F.S | |||
Stability | Typical:±0.25%F.S/year | |||
Working Temp | -20℃~70℃ | |||
Compensation Temp | -10℃~60℃ | |||
Response Time | 0.5s/1.0s/2s/4s | |||
Protection Grade | IP54 | |||
Electrical Connection | 2-wired | 3-wired | 4-wired | 5-wired |
Output Signal | 4~20mA | 0~5V/0~10V | RS485 | 0~10V&RS485 |
Power Supply | 10~30VDC | 16~30VDC | 12~30VDC | 16~30VDC |
Power Consumption | ≤1.5W | |||
Communication | RS-485 standard interface,Modbus RTU protocol or BACnet MS/TP protocol | |||
Certificaton | ROHS certificaton,CE certificaton | |||
Electromagnetic Compatibility | EN61326-1 | |||
Shell Material | UL94-V0 and ABS industrial plastics | |||

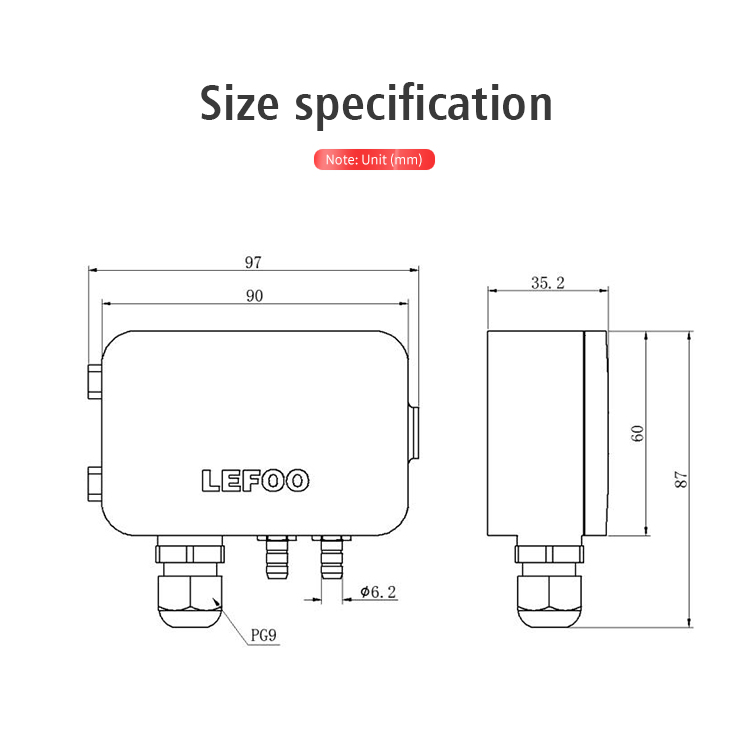

Pressure Interface | Metal barbed interface,φ6.2mm | |||
|
| |||
ORDER REF NO. | ||||||||||
Code and description | Remark | |||||||||
LFM108 | Model | |||||||||
101D | 101D=0±100Pa | 101G | 101G=0-100Pa | Measuring Range | ||||||
102D | 102D=0±1000Pa | 102G | 102G=0-1000Pa | |||||||
251D | 251D=0±250Pa | 103G | 103G=0-10000Pa | |||||||
252D | 252D=0±2500Pa | 251G | 251G=0-250Pa | |||||||
051D | 051D=0±50Pa | 252G | 252G=0-2500Pa | |||||||
501D | 501D=0±500Pa | 501G | 501G=0-500Pa | |||||||
502D | 502D=0±5000Pa | 502G | 502G=0-5000Pa | |||||||
103D | 103D=0±10000Pa | |||||||||
AL | 4~20mA | Output Type | ||||||||
VL | 0~10V | |||||||||
VZ | 0~5V | |||||||||
MOD | RS485 | |||||||||
MVL | RS485,0~10V | |||||||||
MVZ | RS485,0~5V | |||||||||
M | Modbus RTU(RS485 output only) | Protocol Type | ||||||||
B | BACnet MS/TP(RS485 output only) | |||||||||
