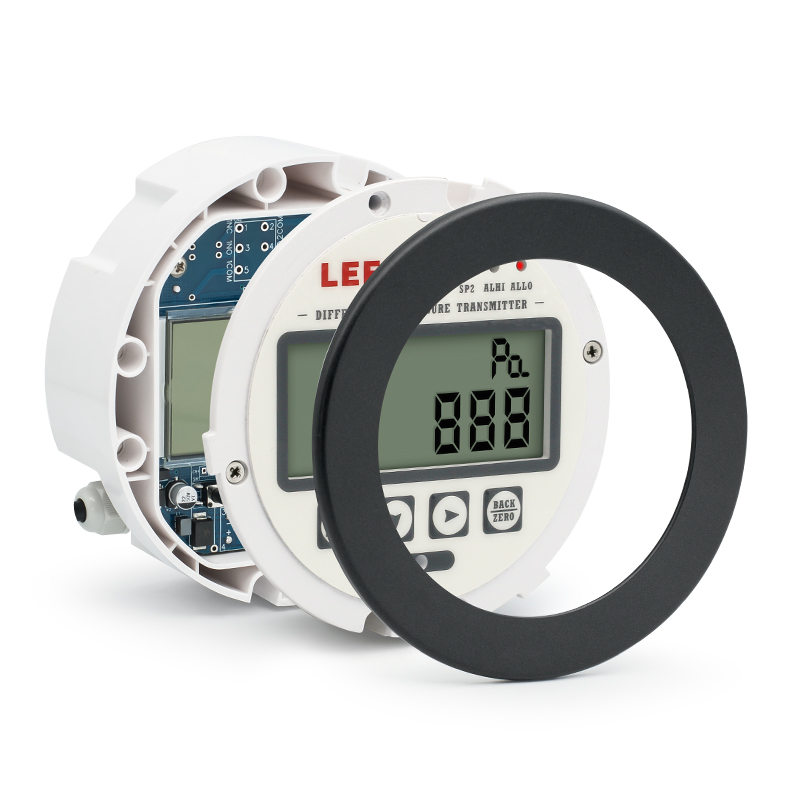

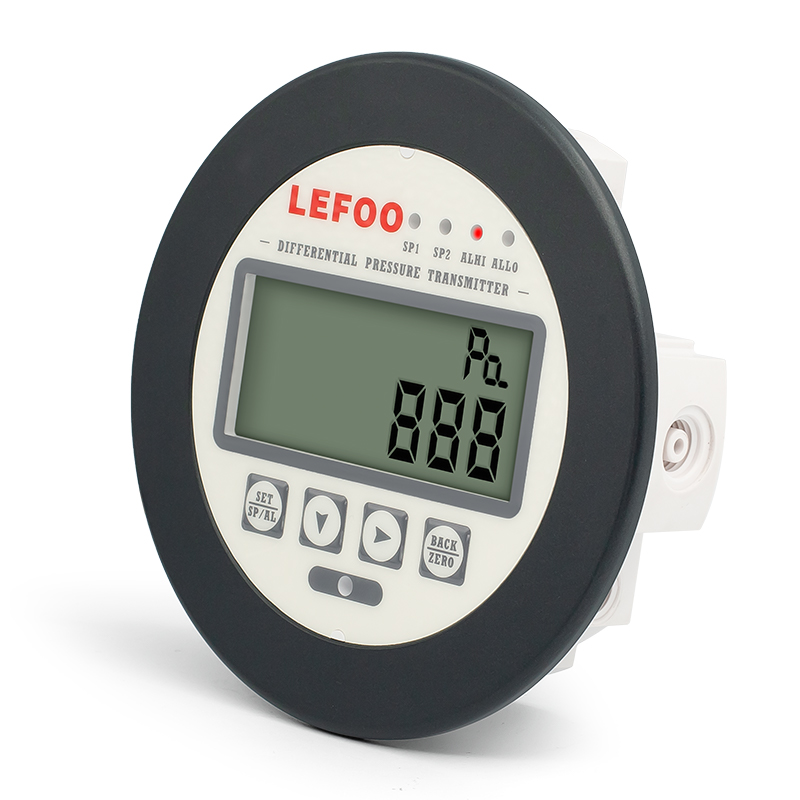

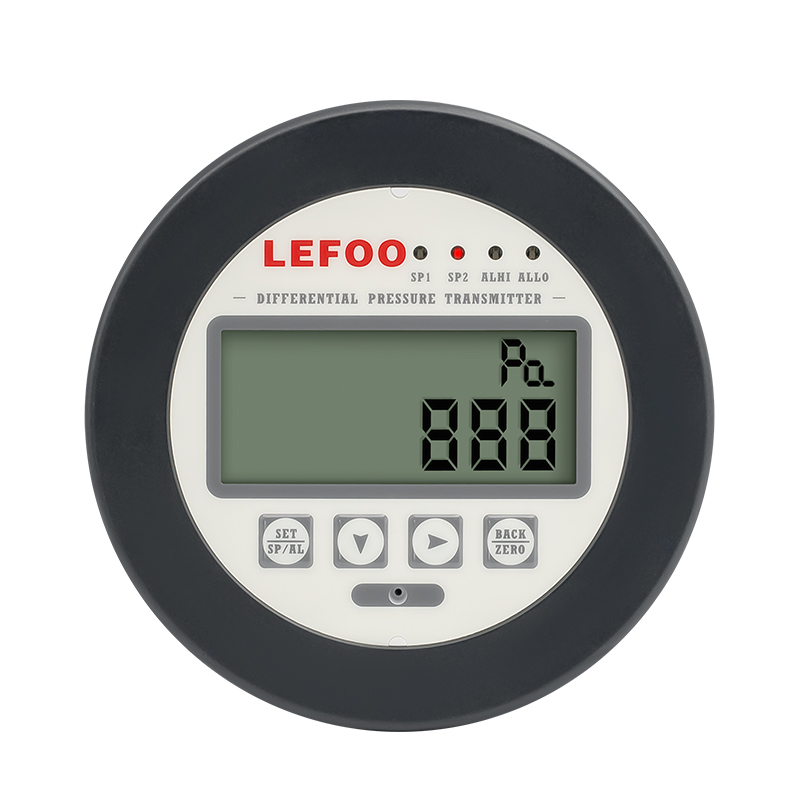

LFM33 Differential Pressure Transmitter/Controller
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications
LFM33 Differential Pressure Transmitter/Controller
Product features
-
■High-precision MEMS digital pressure sensor,to detect positivepressure,negative pressure,or differential pressure;
■Combined function of LCD digital display,switch control andtransmitter output;Adjustable pressure range,and switchable pressure units;
■Adjustable pressure range,and switchable pressure units;
■Support relay working mode,control or alarm output optional,with LEDindication;
■Built-in buzzer with sound-light alarm,support alarm pressuresetting on site;
■RS-485 communication,standard ModBus RTU protocol;
■FR-ABS housing.good impact resistance and heat resistance eto.
Detailed Description
DESCRIPTION
LFM33 Diferential Pressure Transmiter/Controller adopts high-precision MEMS digital pressure sensor,which candetect positive pressure,negative pressure or differential pressure.It can choose analog signal 4~20mA&0~10V orRS485 signal output.It has optional relay switch control and can independently set the relay switch action pressurepoint.It supports a variety of working mode settings to match the actual application requirements.The internal buzzerand LED indication can achieve pressure alarm and indication.Pressure unit switching and digital damping flterdegree can be set on site.It's widely used in air or neutral gas detection and control,and suitable for gas pressuredetection of various ventilation and air conditioning systems and equipment,and differential pressure detection offilter resistance in clean studios laboratories,and gas pipelines.
SPECIFICATION
| Air or non-corrosive gases | |
Measurement range |
| |
Overload pressure | 5kPa(LFM336);10kPa(LFM330);80kPa (LFM332) | |
Accuracy | ±1%F.S | |
Operation Temperature | -10℃~60℃ | |
Compensated Temperature | -10℃~60℃ | |
Storage Temperature | -20℃~70℃ | |
Protection Grade | IP65 | |
Pressure Connection | Plastic Concave Interface,06.5mm | |
Output Signal | 4~20mA&0~10V | RS485 |
Control Signal | 2SPDT relays 3A@250VAC/30VDC | |
Power Supply | 16~30VDC | |
Consumption | ≤2.5W | |
Housing Material | ABS Industrial plastic(UL94-V0) | |
Communication | RS-485 standard interface,Modbus RTU protocol | |
Certification | ROHS,CE | |
Electromagnetic Compatibility | EN61326-1 | |
Display | 76*33mm LCD display | |
Weight | 360g | |
ORDER REF. NO.
Code name and descripton | Remarks | ||||||||||||
LFM33 | Model number | ||||||||||||
6 | -100~100Pa | Range range | |||||||||||
0 | -1000~1000Pa | ||||||||||||
2 | -10000~10000Pa | ||||||||||||
N | N/A | Signal | |||||||||||
E | RS-485 communication | ||||||||||||
A | 4~20mA&0~10V | ||||||||||||
N | N/A | Control | |||||||||||
R | 2 SPDT Relays+1xBuzzer | ||||||||||||
B | 1xBuzzer | ||||||||||||
D | 2 SPDT Relays | ||||||||||||
P | Plastic panel (round) | Mounting | |||||||||||
S | Stainless steel panel(square) | ||||||||||||
F | Front panel air intake | Air intake | |||||||||||
B | Back air intake | ||||||||||||
S | Side air intake | ||||||||||||
LFM33 0 - A R P F | Selection example | ||||||||||||
