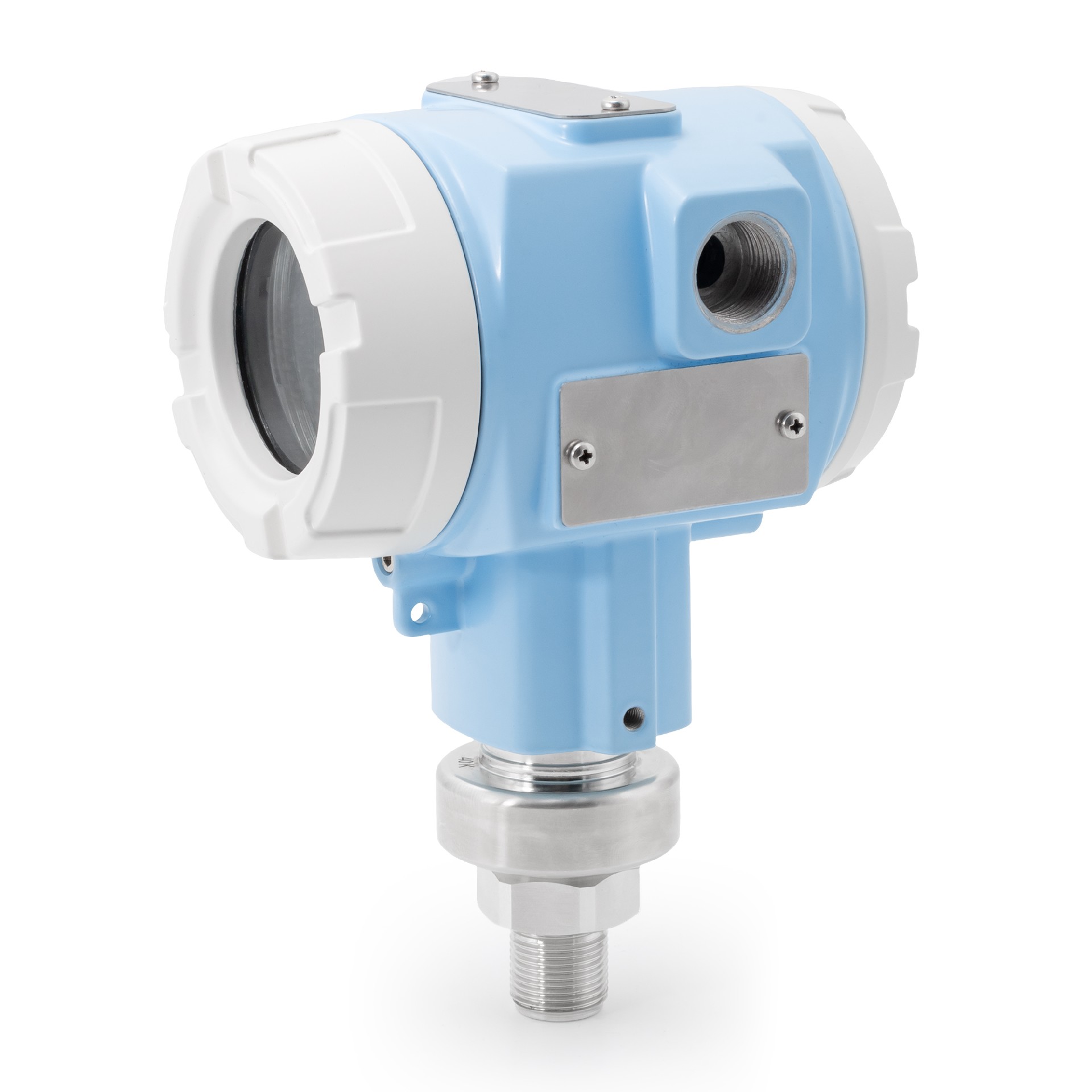

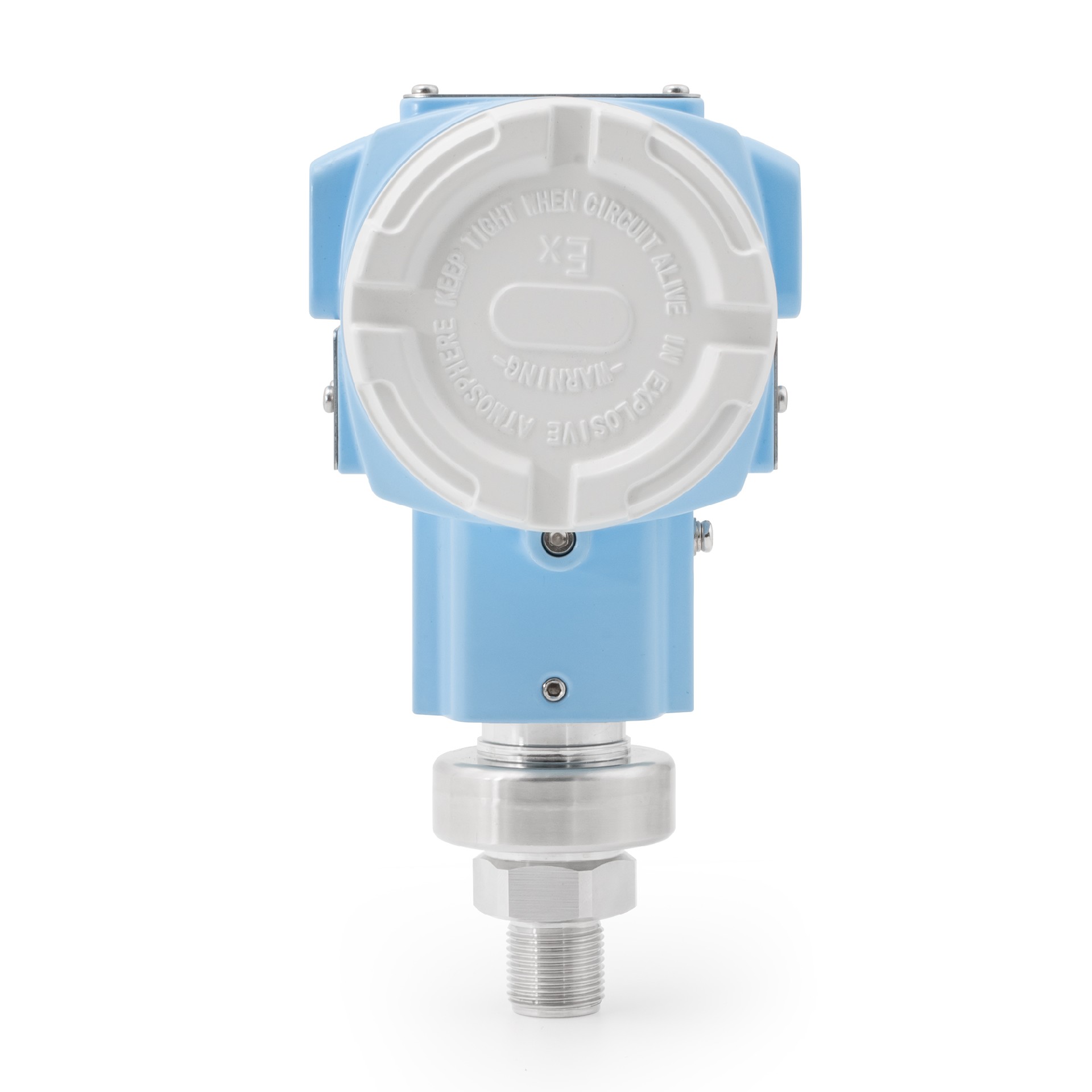

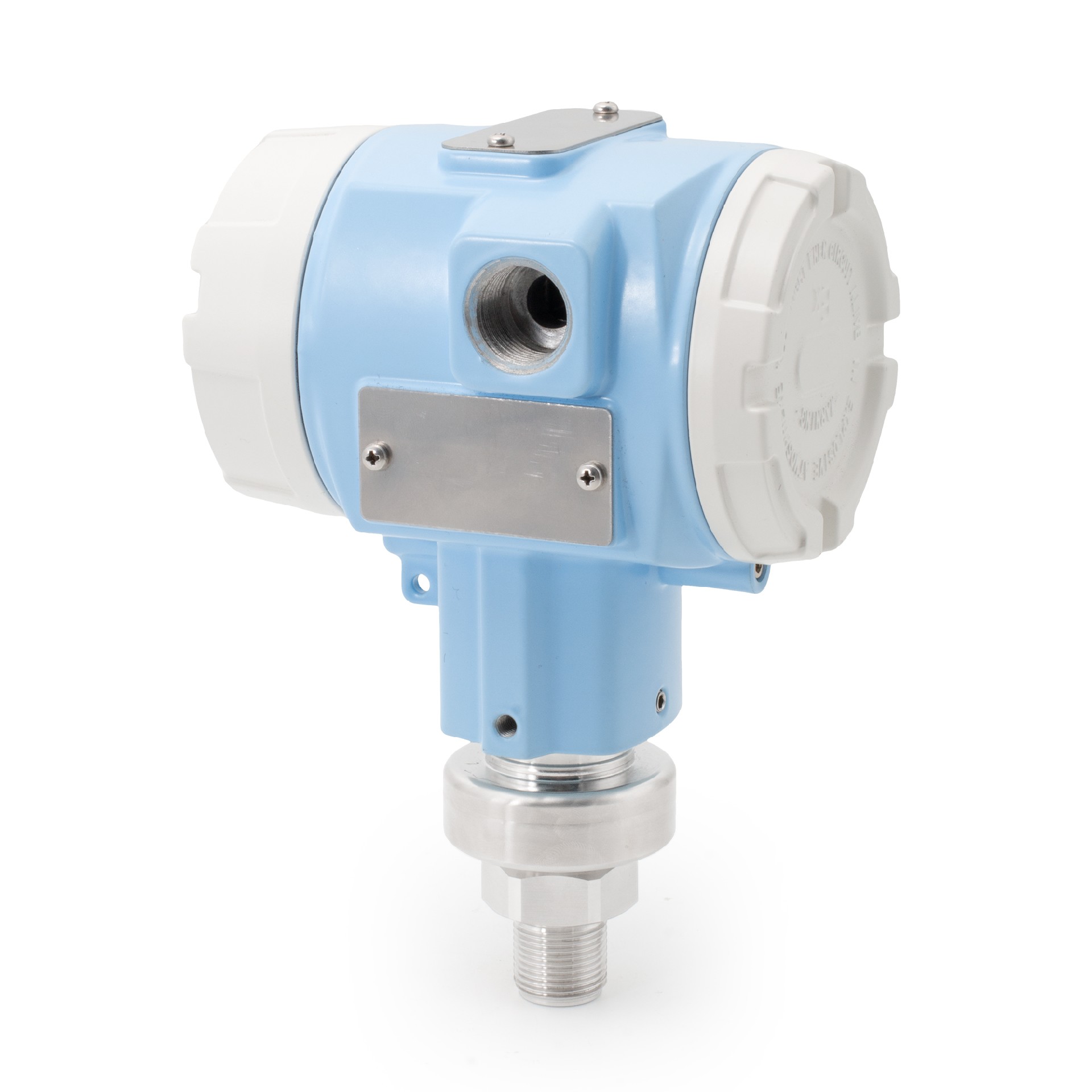

LFT700 Single-Crystal Silicon Pressure Transmitter
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications
LFT700 Single-Crystal Silicon Pressure Transmitter
Product features
-
■Utilizes MEMS single-crystal silicon high-precision pressure sensor.
■High stability with a measurement accuracy of 0.075%F.S.
■Multiple diaphragm materials available to suit various media.
■Maximum rangeability of up to 100:1.
■Features a high-brightness LCD display with backlight and reversible display orientation.
■On-site zeroing function,with on-site zero and span adjustment capabilities.
■Three output options:RS485,4~20mA,and 4~20mA+HART.
Detailed Description
LFT700 can accurately measure the pressure of liquid,gas orsteam,and convert it into 4~20mA output signal.The Transmittercan be operated through three buttons on the device,or by handmanipulator,or configuration software.The display andconfiguration can be adjusted without impacting the 4~20mA outputsignal.It is widely used in pressure measurement in industrial sitessuch as petroleum,chemical,electric power,and hydrology.
STANDARD SPECIFICATIONS
Pressure range is calibrated based on the standard zero poir stainless steel 316L diaphragm,filled liquid is silicone oil.
PERFORMANCE REQUIREMEN
Overall performance includes but not limited to referenc accuracy,static pressure influence,ambient temperatul influence,and other influence.
Typical accuracy:±0.075%of Upper Range Value(URV) Annual stability:±0.2%of Upper Range Value(URV)
1)Pressure calibration reference accuracy
Including linearity,hysteresis and repeatability from zero point | |||
Linear output | Td≤10 | ±0.075% | Standard range: |
10<TD≤100 | ±0.0075TD% | ||
TD is range turn down ratio. | |||
