LFT2800 General - purpose Pressure Transmitter
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications
LFT2800 General - purpose Pressure Transmitter
Product features
-

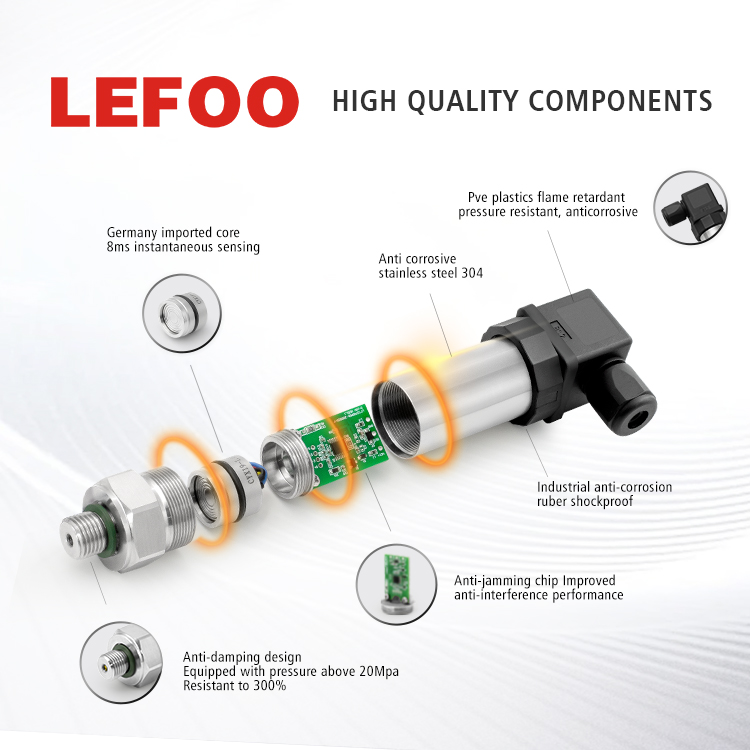

■Adopt oil-filled silicon core with high overload capacity

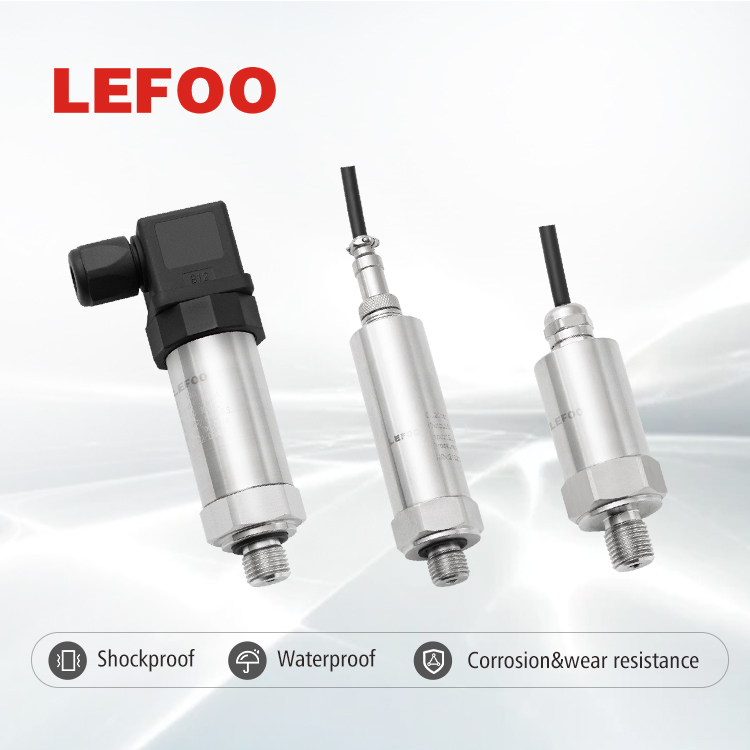

■Excellent corrosion and wear resistance
■Using ASIC technology,digital compensation
■Can be applied in a variety of complex environment
Detailed Description
DESCRIPTION
LFT2800 pressure transmitteris widely used in the measurement of fluid medium pressure in test systems such as fireprotection,water treatment,water supply systems,air compressors,and pneumatic device and factory automation.It hasexcellent anti-corrosion and anti-wear performance,adopts ASIC technology,MEMS technology,digital compensation,andcan be applied in various complex environment.
SPECIFICATION | |||||
Measurement Range | -100kPa...0~5kPa...60MPa | ||||
Overload pressure | 1.5 times of the rated pressure | ||||
Accuracy" | ±0.5%F.S(-100kPa.0~5kPa.60MPa) | ||||
±0.25%F.S(-100kPa.…0~10kPa….60MPa) | |||||
Stability | <0.5%F.S/year | ||||
| -20~85°℃ | ||||
Storage Temp | -40~100°℃ | ||||
Measured Medium |
| ||||
| 2-wired(current) | 3-wi red (voltage) | 4-wired | ||
Output Signal | 4~20mA | 0.5~4.5V | 0~5V | 0~10V | RS485 |
Power Supply | 8~36VDC | 4.75~5.25VDC | 8~36VDC | 12~36VDC | 10~30VDC |

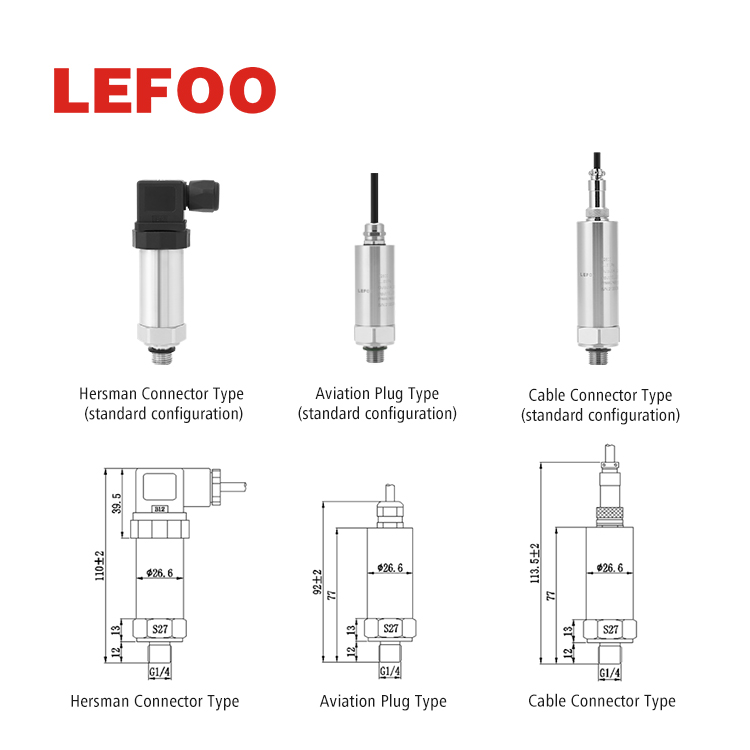

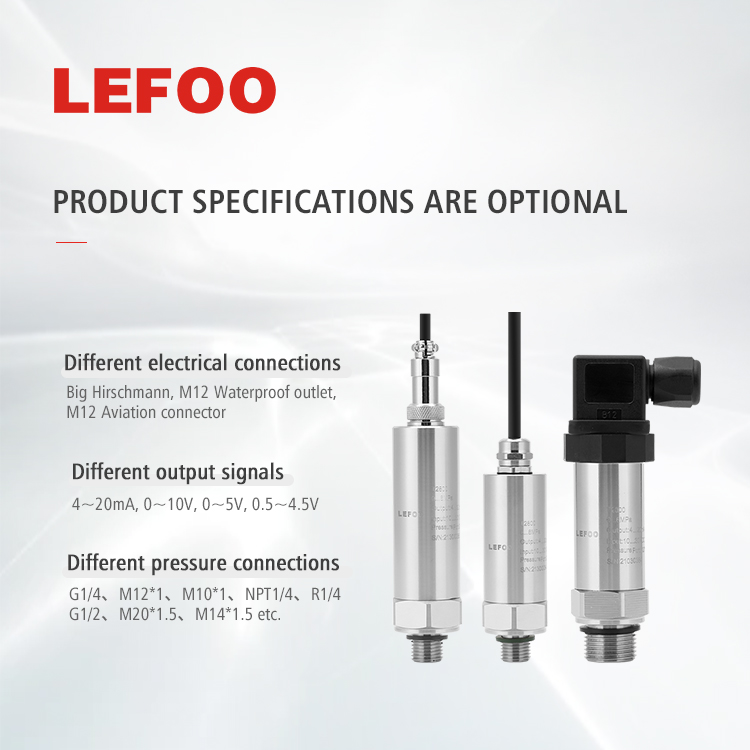

Electrical Connection | DIN43650A(Big Hirschmann),M12 waterproof outlet,GX12 aviation connector (three-core/four | ||||
Enclosure Protection | IP54(GX12 aviation connector)、IP65(DIN43650A,M12 waterproof outlet,M12 four-core | ||||
Pressure Connection | G1/4、NPT1/4、R1/4、G1/2、7/16-20UNF、M20*1.5、M10*1、M14*1.5 etc | ||||
Pressure Form |
| ||||
Certification | RoHS、EU electrical safety standard CE | ||||
