LFT2080 Anti-corrosion Pressure Transmitter
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications

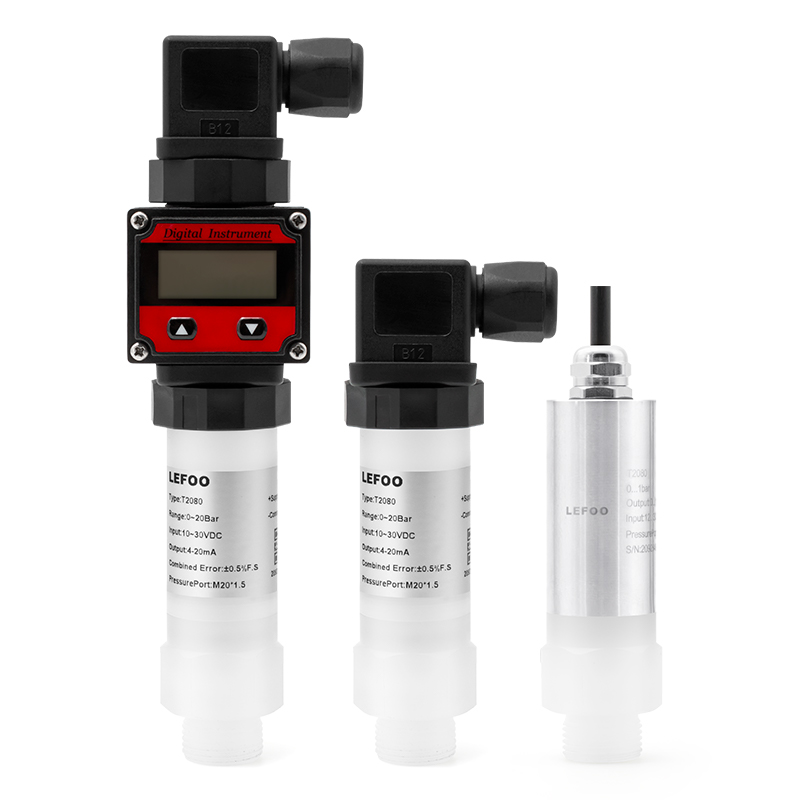

LFT2080 Anti-corrosion Pressure Transmitter
Product features
-
■Resistant to strong acids and alkalis
■Small size,high precision
■High sensitivity and stable performance
■Strong anti-interference ability and good long-term stability
■Using ASIC digital compensation technology
Detailed Description
LFT2080 Anti-corrosion Pressure Transmitter adopts a ceramic piezoresistive core with high overload capacity,which has excellent anti-corrosion and anti-wear properties.It adopts AS IC technology and is mainly used forwater disinfection,chlorine,chemical industry,battery equipment and other media where the medium is strongacid,strong alkali or other highly corrosive industries,as well as pressure measurement in food hygiene,medical and other industries.
SPECIFICATION
Pressure Range | -100kPa～100kPa...2MPa | |||
Overload Pressure | 1.5 times of the rated pressure | |||
Destroying pressure | 2 times the rated pressure | |||
Accuracy① | ±0.5%F.S、±1%F.S | |||
Stability | <0.5%F.S/year | |||
Working Temp | -20～80℃ | |||
Storage temperature | -20～80℃ | |||
Measured medium | Gas or liquid compatible with 1Cr18Ni9Ti,PVDF,fluoroelastomer or perfluoroether rubber | |||
Anti-corrosion pressure transmitter | ||||
Electrical Properties |
| 3 wired | ||
| 4～20mA | 0.5～4.5V | 0～5V | 0～10V |
| 8～36VDC | 4.75～5.25VDC | 8～36VDC | 12～36VDC |
|
| |||
| ||||
Electrical Properties | 2 wired | 3 wired | ||
Output Signal | 4～20mA | 0～10V | ||
Power Supply | 12～30VDC | 12～30VDC | ||
Electrical Connection | DIN43650A(Big Hirschmann) | |||
Enclosure Protection | IP65 | |||
Pressure Connection | G1/2、M20*1.5 | |||
Pressure Form | Gauge Pressure G | |||
Certification | RoHS | |||
Note①:Measured at 25℃,including comprehensive accuracy of linearity,repeatability and hysteresis.
ORDER REF NO.
Code and description | Remark | ||||||||||||||
LFT2080 | Model | ||||||||||||||
Range | -100kPa~100kPa…2MPa | Range | |||||||||||||
K | K=kPa | P | P=psi | Unit | |||||||||||
B | B=Bar | M | M=Mpa | ||||||||||||
A4 | A4=4～20mA(2 wired) | Output | |||||||||||||
V05 | VO5=0.5～4.5V(3 wired) | ||||||||||||||
VO | VO=0～5V(3 wired) | ||||||||||||||
V10 | V10=0～10V(3 wired) | ||||||||||||||
0.5 | 0.5=0.5%F.S | Accuracy | |||||||||||||
1.0 | 1.0=1.0%F.S | ||||||||||||||
D1 | D1=DIN43650A(Big Hirschmann) | Electrical | |||||||||||||
M | M=M12(M12 waterproof outlet) | ||||||||||||||
G2 | G2=G1/2 |
| |||||||||||||
M20 | M20=M20*1.5 | ||||||||||||||
P | P=PVDF | Shell | |||||||||||||
S | S=Stainless steel | ||||||||||||||
N | without display(default) | Display | |||||||||||||
D1 | with display | ||||||||||||||
1.0 | 1.0=1m | Cable Length | |||||||||||||
2.0 | 2.0=2m | ||||||||||||||
3.0 | 3.0=3m | ||||||||||||||
LFT2080 0-1 B A4 1.0 M G2 P N 1.0 | Example | ||||||||||||||
