LFW10 Temperature Transmitter
High-precision pressure measurement with digital display and data logging capabilities for industrial applications.
Product Brochure
Download detailed specifications
LFW10 Temperature Transmitter
Product features
-
■Up to 5mounting and output options available
■New industrial look quick-ffit design for fast installation and deployment
■Imported Heraeus ClassAsensors,high accuracy,fast responselow temperature drift
■Excellent anti-interference ability and protection function,CEcertifification IP65,RoHS
Detailed Description
DESCRIPTION
The LFW10 series temperature transmitter is a transmiter designed for industrial applications.It is specially designedfor shock surges,electrostatic discharges group pulse withstand voltages,etc,and has strong anti-interference abilityThere is a wall hangingThere are five installation methods of air duct/water pipe split,and clamp,and three outputs ofcurent,voltage and thermal resistance The mode is optional,the on-site adaptability is strong and the spring screw/terminal design is suitable for quick installation.canlt is widely used in computer room HVAC,buildings,warehouses andother places where temperature detection is required.
SPECIFICATIONS
Sensor | ·High precision thermal resistance please refer to the selection instruction table(resistance output) |
Output | Resistance value,please refer to the selection table and thermal resistance indexing table |
Thermal | Please check the selection table and thermalresistance indexing table |
Accuracy | Typical 0.2~0.5℃@0/25℃,see selection table±0.3℃@25℃,see accuracy curve |
Power | ·Voltage type 15~35VDC/24VAC±20% |
Output | (analog output type):<500Q(current type)≥2KQ(0~5V),≥3KQ(0~10V) |
Housing | PC housing、stainless steel probe(Φ6mm)and sleeving |
Working environment | -40~70°℃,0~95%RH(Non-condensing) |
IP level | IP65 |
SELECTION
Codes &descriptions | Remark | |||||||

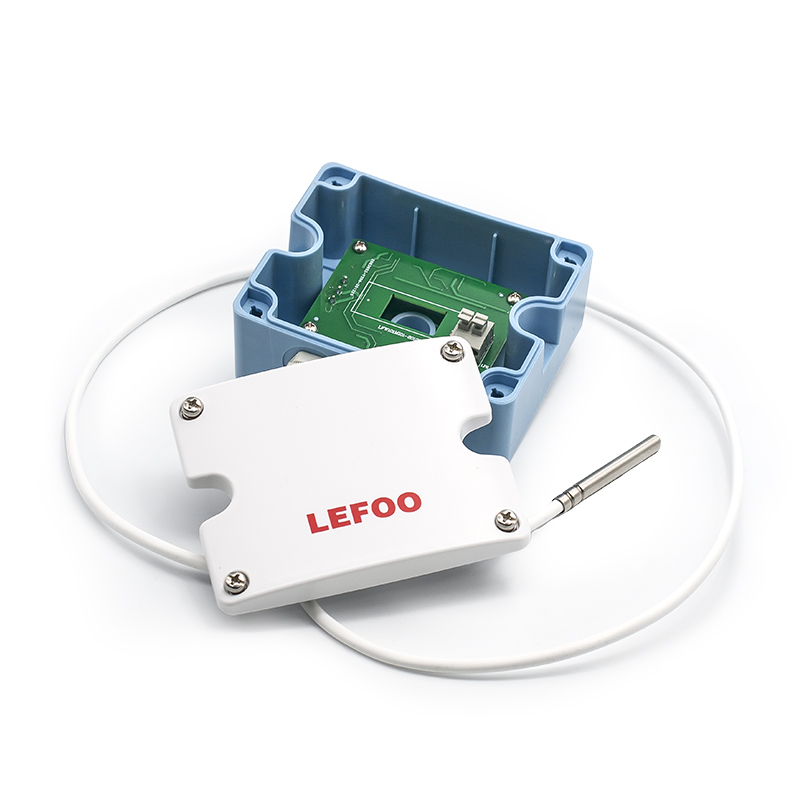

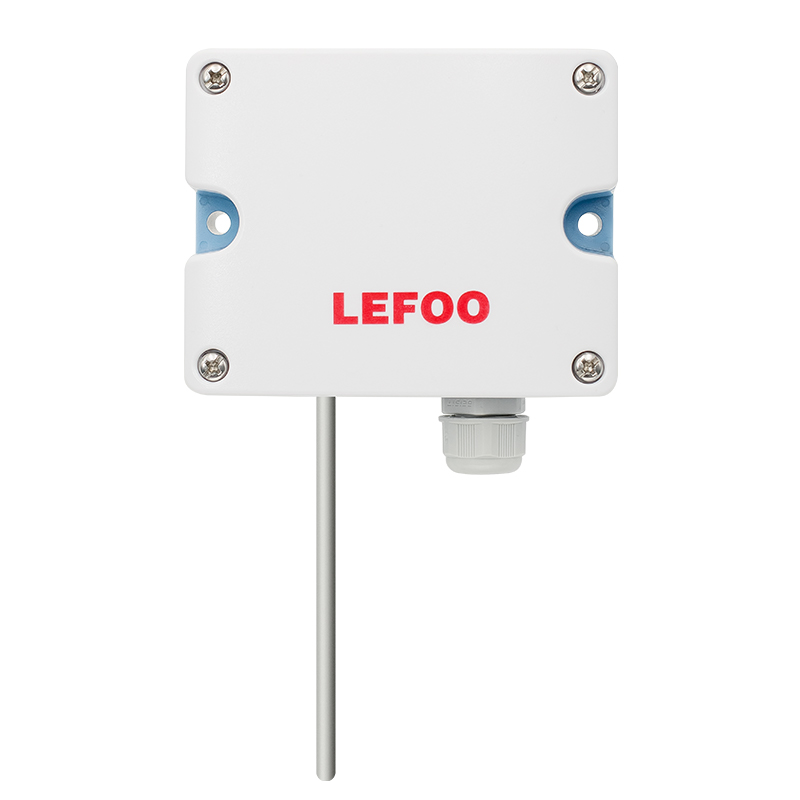

LFW10-1 | Wall-mounted type temperature transmitter | LFW10-4 | Split type temperature transmitter | Model | ||||

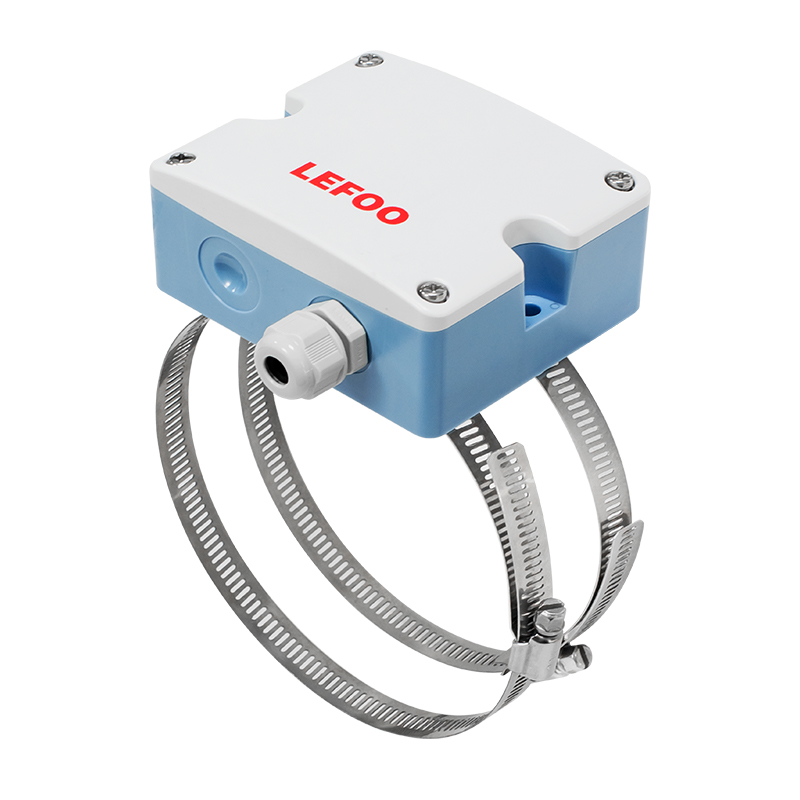

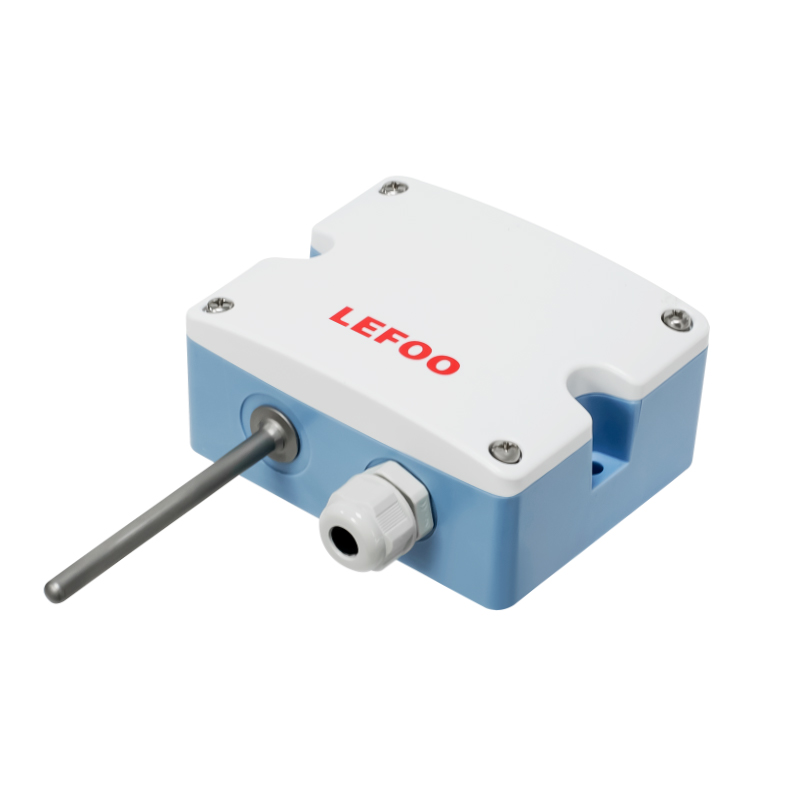

LFW10-2 | Duct type temperature | LFW10-5 | Clamp type temperature transmitter | |||||
LFW10-3 | Pipe type temperature | |||||||
V10 | 0~10VDC(3-wired) | 0 | PT1000,±0.2℃@0℃ | Temperature | ||||
A4 | 4~20mA(2-wired) | 1 | PT100,±0.2℃@0℃ | |||||
V5 | 0~5VDC(3-wired) | 2 | NTC20K,±0.3℃@25℃ | |||||
6 | NTC10K,±0.3℃@25℃ | |||||||
0 | null | Temperature | ||||||
1 | 0~50℃ | |||||||
2 | -20~60℃ | |||||||
8 | others(available on request) | |||||||
0 | 65MM | Probe length | ||||||
1 | 100MM | |||||||
2 | 200MM | |||||||
3 | 150MM | |||||||
8 | others(available on request) | |||||||
LFW10-2 A4 1 2 | Selection example | |||||||
